Standards
IEC 61243-1:2021
NF EN IEC 61243-1:2021

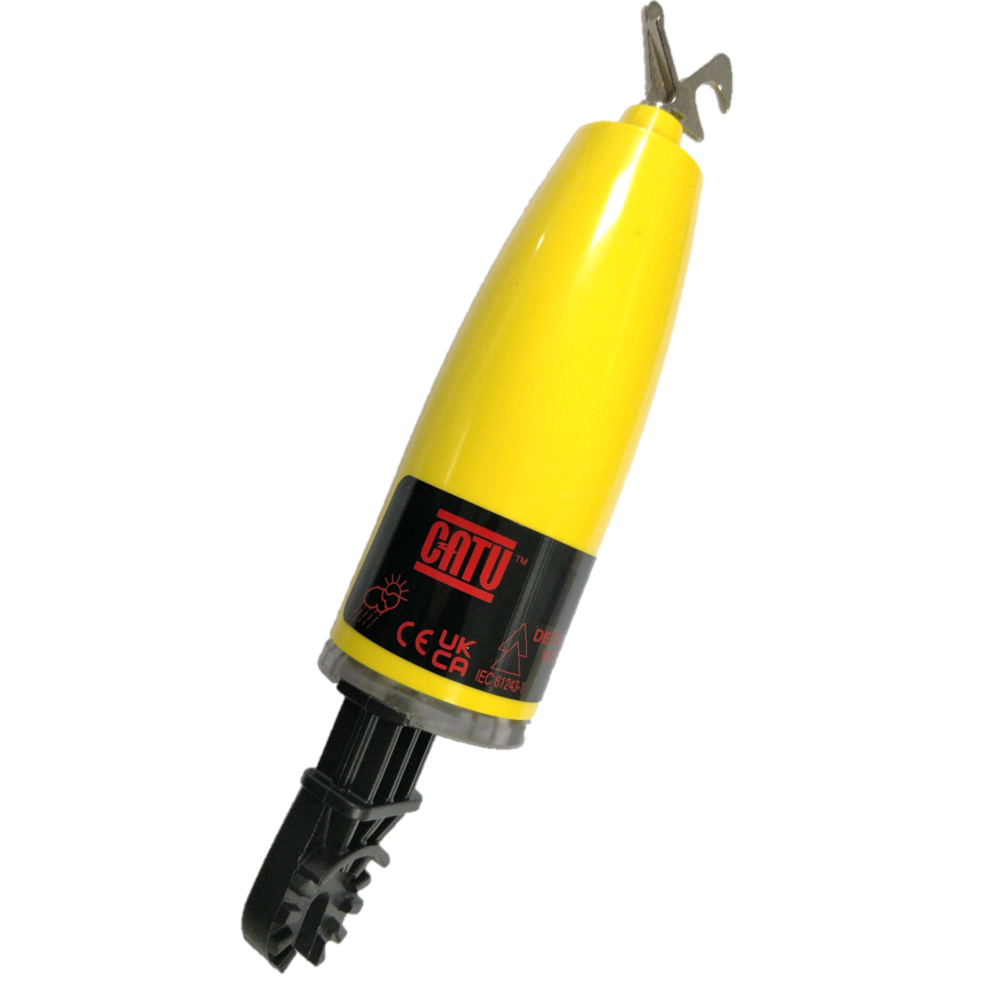

Electronic voltage detector (Medium Voltage)

Application:

  • Electronic voltage detector for indoor and outdoor use, with high level of shock, vibration and rain resistance.
  • Capacitive head technology, ultra compact.
  • Broad voltage range, operating frequency 50 and 60 Hz.

Features:

  • Robust thermoplastic housing.
  • Voltage presence signaled by:
    • Flashing red LEDs;
    • Powerful audible signal (67 dB (A)/1.5 m);
    • Visible over 360° with lighting and display.
  • Contact electrodes easily interchangeable.

Composition:

  • Supplied with an end-fitting matching the insulating stick terminal:
    • C: hexagonal 12 mm for sticks with C fitting;
    • K: universal for sticks with K fitting;
    • U: UDI end-fitting with a U shape (55 mm overhang) for sticks with UDI end-fitting.
  • Supplied in a carrying case.

Optional accessories:

  • Recommended insulating sticks: CE-4-21 series.

Data Sheet Doc EU

Leaflet1

19 Products found
Reference Fitting Voltage range Frequency Category Weight (kg)
CC-765-2/72-C C 2 - 7,2 kV 50 / 60 Hz L 0,600
CC-765-2/72-K K 2 - 7,2 kV 50 / 60 Hz L 0,600
CC-765-3/10-C C 3 - 10 kV 50 / 60 Hz L 0,600
CC-765-3/10-K K 3 - 10 kV 50 / 60 Hz L 0,600
CC-765-3/10-U UDI 3 - 10 kV 50 / 60 Hz L 0,600
CC-765-55/20-C C 5,5 - 20 kV 50 / 60 Hz L 0,600
CC-765-55/20-K K 5,5 - 20 kV 50 / 60 Hz L 0,600
CC-765-55/20-U UDI 5,5 - 20 kV 50 / 60 Hz L 0,600
CC-765-10/30-C C 10 - 30 kV 50 / 60 Hz L 0,600
CC-765-10/30-K K 10 - 30 kV 50 / 60 Hz L 0,600
CC-765-10/30-U UDI 10 - 30 kV 50 / 60 Hz L 0,600
CC-765-10/36-C C 10 - 36 kV 50 / 60 Hz L 0,600
CC-765-10/36-K K 10 - 36 kV 50 / 60 Hz L 0,600
CC-765-10/36-U UDI 10 - 36 kV 50 / 60 Hz L 0,600
CC-765-15/45-C C 15 - 45 kV 50 / 60 Hz L 0,600
CC-765-15/45-K K 15 - 45 kV 50 / 60 Hz L 0,600
CC-765-30/66-K K 30 - 66 kV 50 / 60 Hz L 0,600
CC-765-25-C C 25 kV 50 / 60 Hz L 0,450
CC-765-03-10-M-3 3 - 10 kV 50 / 60 Hz L 0,600
