  3. CC-765-10/36-U

CC 765 10/36 U


 CC-765-10/36-U

Standards
IEC 61243-1:2021
NF EN IEC 61243-1:2021

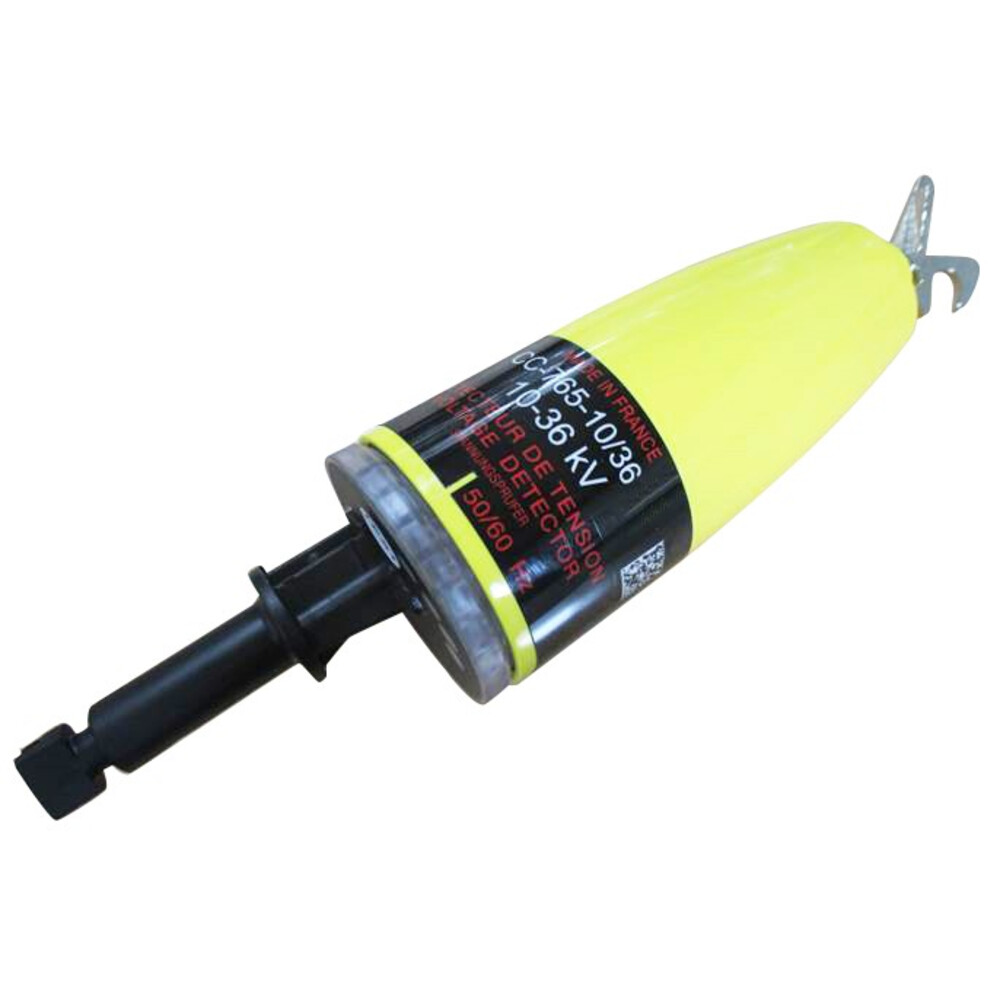

Electronic voltage detector, compact series, 10-36 kV, UDI end fitting

Application:

  • Electronic voltage detector for indoor and outdoor use, with high level of shock, vibration and rain resistance.
  • Capacitive head technology, ultra compact.
  • Broad voltage range, operating frequency 50 and 60 Hz.

Features:

  • Robust thermoplastic housing.
  • Voltage presence signaled by:
    • Flashing red LEDs;
    • Powerful audible signal (67 dB (A)/1.5 m);
    • Visible over 360° with lighting and display.
  • Contact electrodes easily interchangeable.

Composition:

  • Supplied with an end-fitting matching the insulating stick terminal U: UDI end-fitting with a U shape (55 mm overhang) for sticks with UDI end-fitting.
  • Supplied in a carrying case.

Optional accessories:

  • Recommended insulating sticks: CE-4-21 series.

Data Sheet Doc EU

Leaflet1

Reference Fitting Voltage range Frequency Category Weight (kg)
CC-765-10/36-U UDI 10 - 36 kV 50 / 60 Hz L 0,600
