MP 635/.. D


 MP-635/..-D

Standards
NF C 18-425
IEC 60900:2018

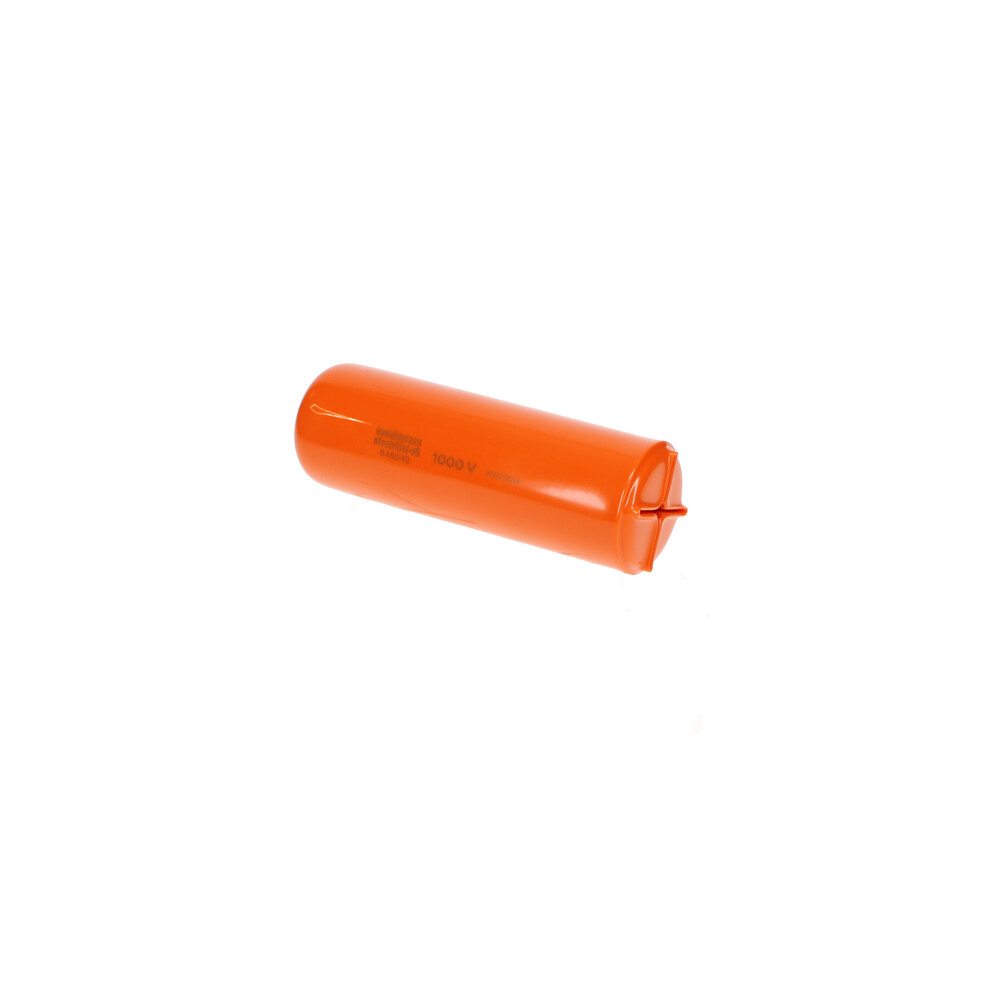

Insulated cable push-on shroud

Application:

Push-on shrouds offer insulation for exposed cable ends. By covering termination points, they help prevent electrical contact, minimize the risk of short circuits, and shield against damage.

  • To cover the stripped ends of LV cables.
  • Protects live LV connectors.
  • For all installations. (Indoor, overhead and underground).
  • For use on electric and hybrid vehicles and machinery.
  • Maximum operating voltage: 1,000 V AC - 1,500 V DC..

Features:

  • Cross-shaped slotted ends for inserting and holding a cable, protruding part or connector.
  • Complies with NF C18-425.
  • Tested at 10kV in accordance with IEC 60900:2018
  • Material: semi-rigid PVC.
  • Standard packaging quantity (SPQ): 5 caps.

Data Sheet



8 Products found
Reference Length (mm) Inner Ø Dimensions of the conductor to be protected
MP-635/10-D 75 10 For cables with external diameter of 5 to 9 mm or cross-section of 6 to 25 mm².
MP-635/15-D 100 15 For cables with external diameter of 7 to 13 mm or cross-section of 10 to 50 mm².
MP-635/20-D 100 20 For cables with external diameter of 9 to 16 mm or cross-section of 25 to 95 mm².
MP-635/25-D 100 25 For cables with external diameter of 12 to 20 mm or cross-section of 50 to 150 mm².
MP-635/30-D 120 30 For cables with external diameter of 14 to 25 mm or cross-section of 70 to 240 mm².
MP-635/40-D 135 40 For cables with external diameter of 16 to 30 mm or cross-section of 30 to 300 mm².
MP-635/50-D 155 50 For cables with external diameter of 20 to 40 mm or cross-section of 150 to 600 mm².
MP-635/60-D 180 60 For cables with external diameter of 25 to 50 mm or cross-section of 240 to 1000 mm².
