 CE-9-026-SE

Standards
IEC 62193:2003
IEC 60855-1:2016

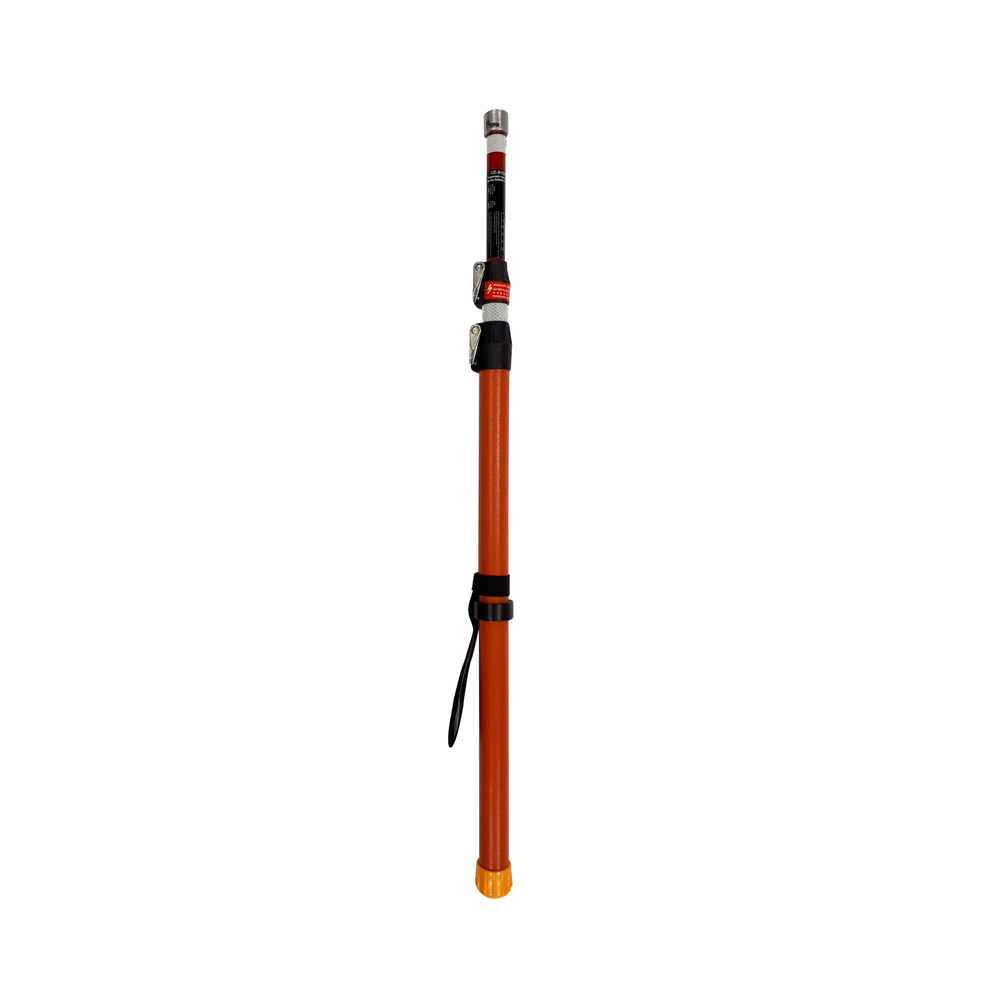

Adjustable telescopic insulating stick, extended length 2,60 m, max voltage 70 kV, Bayonet end-fitting E

Application:

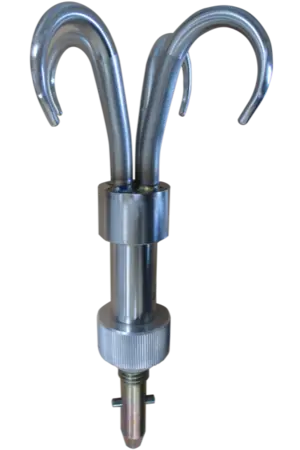

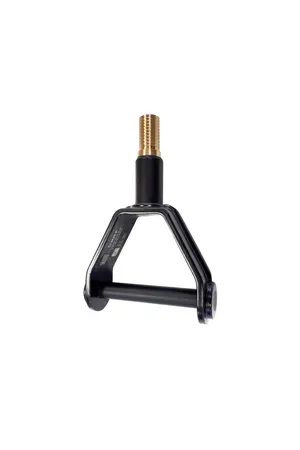

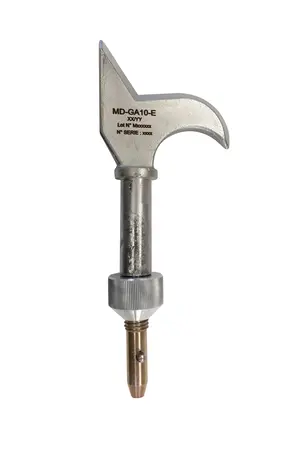

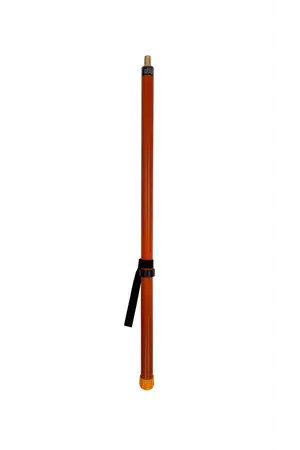

This solution has an insulating telescopic stick (CE-9-026-SE) with an insulating extension (Z-RAVZC-120-S), a pike hook (MD-GA10-E), a grappling hook (MD-PD10-E) and a D-handle (CI-M25-P), enabling the emergency services to create outlets. The insulating stick (CE-9-026-SE) is extendable and lockable at all heights, with a maximum extended length of 2.60 m. The insulating extension (Z-RAVZC-120-S) brings the total extended length to 3.8 m. The stick (CE-9-026-SE) has a bayonet fitting which connects to either the pike hook (MD-GA10-E) or the grappling hook (MD-PD10-E). The D-handle (CI-M25-P) connects to the lower end of the stick (CE-9-026-SE) or of the extension (Z-RAVZC-120-S) to improve ergonomics when working.

Features:

  • Fully assembled length: 3.8 m
  • Transport length: 1.25 m
  • Insulation up to a network voltage 70 kV (upper element extended)
  • Tensile and compressive strength: > 100 kg
