CE 9 5603

CE-9-5603-.CE-9-5603-.

 CE-9-5603

Standards
IEC 61235
IEC 61230 Annexe B
IEC 62193 (6.4.2)

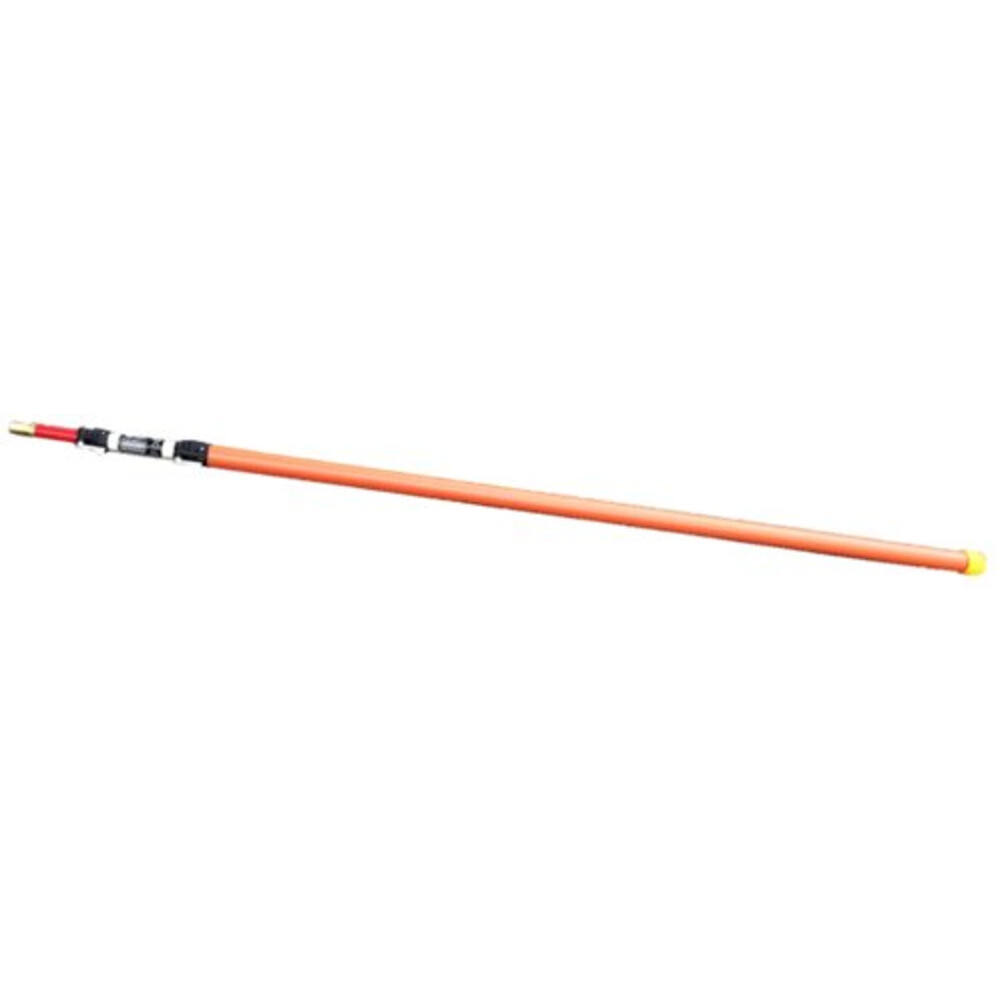

Adjustabletelescopicinsulatingstick,extendedlength5,6m,maxvol355 kV,screw 25 mm

Application:

  • Voltage detection.
  • Earthing and short-circuiting.
  • Disconnecting/reconnecting.
  • Indoor/outdoor.
  • Adjustable length by clamp system, according to intervention height.
  • Possibility of adding an extension (Z-RAVZC200) to increase max length up to 7,6 m.

Features:

  • Material: insulating tube made of epoxy resin, glass fiber reinforced.
  • Base section fitted with grip.
  • Easy maintenance and replacement of top tube and fittings.

Data Sheet user guide1

Leaflet1

Reference Rated Insulation Voltage Length Folded (mm) Length Extended (mm)
CE-9-5603 362 000 V 2 150 5 600
