MS 918 L


 MS-918-L

Standards
IEC 61243-3:2014 /
EN 61243-3:2015 / EN 50110-1 / IEC 61010-1 / IEC 61010-031

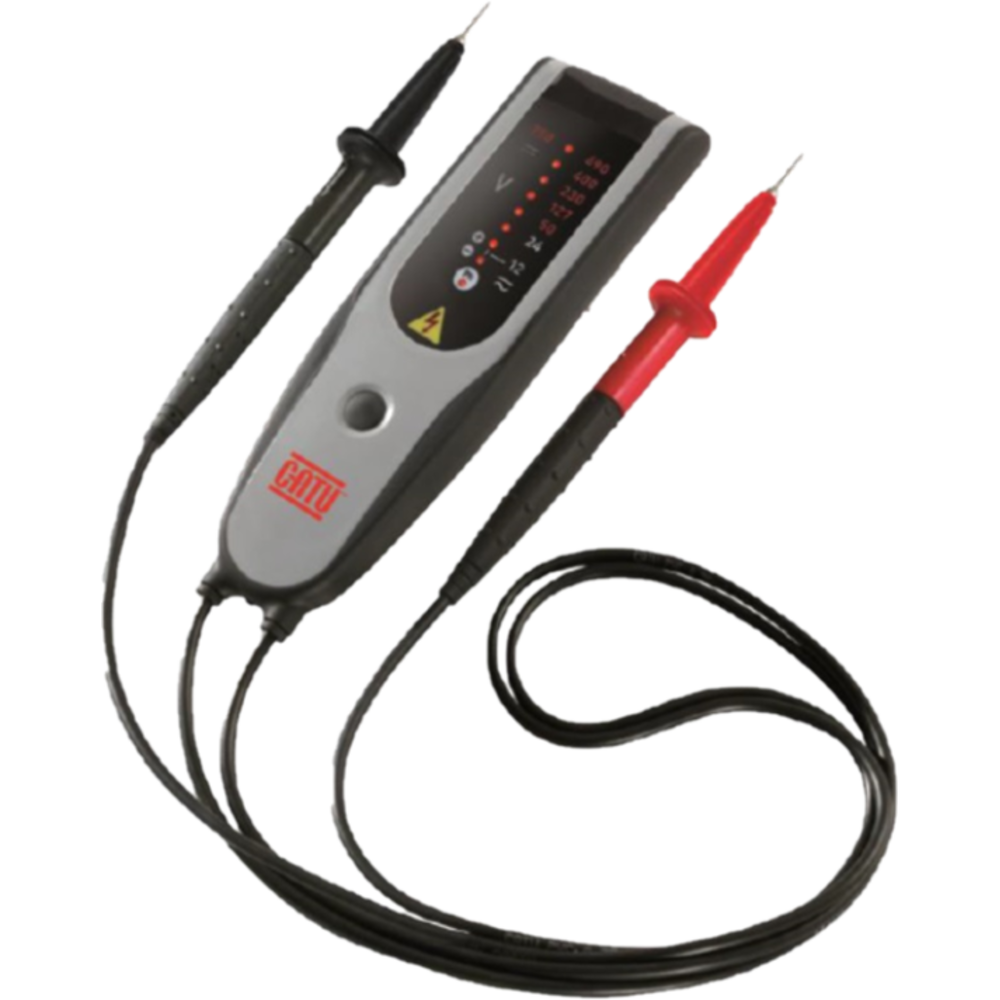

Voltage detector 12 to 900 V AC. Phase rotation. Probe Ø 2 mm L: 19 mm. LED.

Application:

  • Check the presence of voltage.
  • Checks voltage levels from 12 to 900 V AC, 12 to 1 000 V DC (according to models).
  • Sound and light continuity for a non-live circuit (threshold of 80 Ω).
  • Search for the polarities of a DC circuit.
  • Unipolar phase identification.
  • Phase rotation detection check (two-wire method).
  • For indoor/outdoor use.

Features:

  • Fitted with test lead points Ø 2 mm L: 19 mm.
  • Total safety with hazardous voltage indicator light (> 50 V).
  • Protection level: IP65/IK06.
  • Self test button to discern the verification of the good functioning and the continuity function.
  • Completely modular and adjustable to eclipse sockets.
  • Equipped with a lighting lamp at the measuring point.
  • LED display.

Optional accessories:

  • Carrying bag with belt loop, Ref. M-87285.
  • Holder, Ref. M-952325.

Data Sheet Doc EU

Leaflet1

Video Video
Reference Frequency Operating Voltage AC Operating Voltage DC Category Weight (kg)
MS-918-L 50 - 400 Hz 12 - 900 V 12 - 1 000 V IV 600 V - III 1 000 V 0,35
