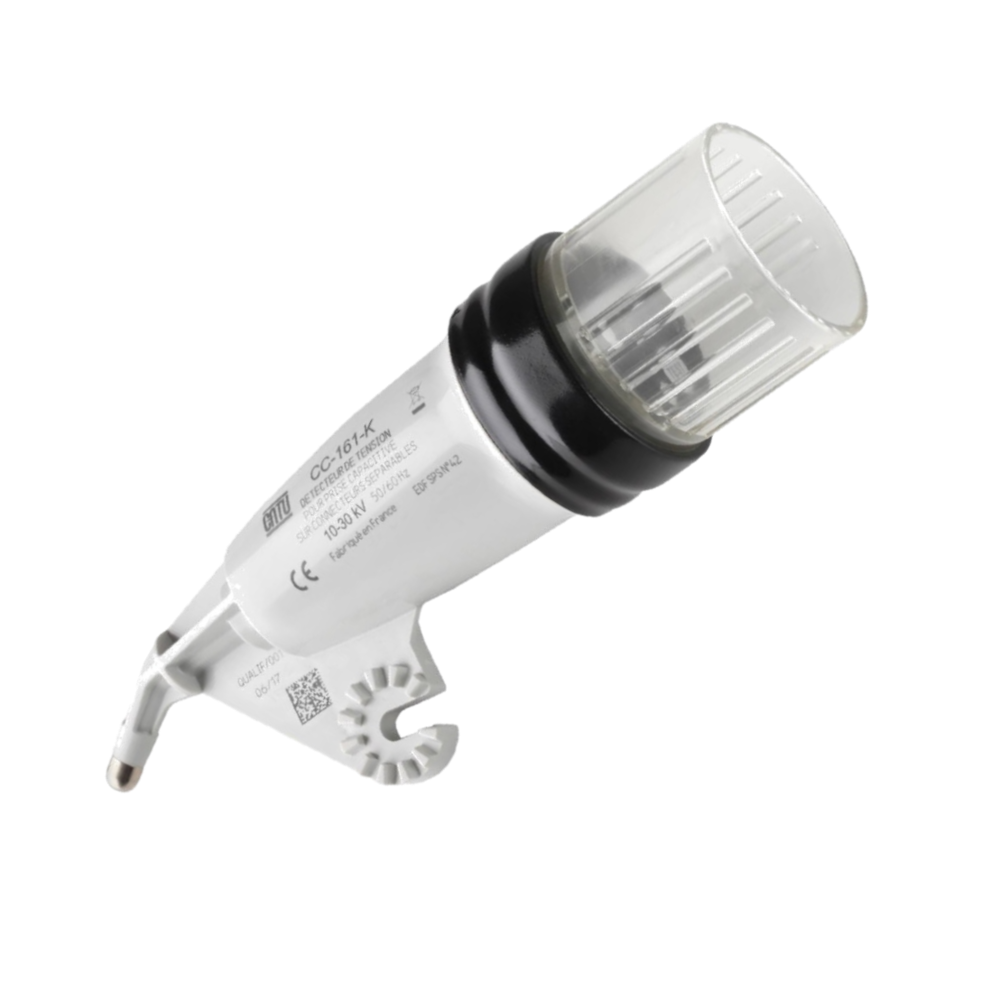

CC 161 K


 CC-161-K

Standards
SPS EDF N°42
Unipolar voltage detector for elbow connectors with capacitive divider 10-30 kV

Application:

  • Unipolar voltage detector for elbow connectors with capacitive divider.
  • Maximum operating voltage: 30 kV network.

Features:

  • Voltage range : 10 to 30 kV.
  • The shape of the contact electrode removes the cap from the separable connector.
  • Signalisation :
    • 1 red LED (voltage presence);
    • 1 green LED (stanby state);
    • Timed audio signal.
  • Function check by pressing the TEST button:
    • Switch on by flashing red LED
    • Triggering of the clocked sound signal
  • Fixing on insulating stick by universal notched tip type "K".

Composition:

  • Supplied in a hard case.

Optional accessories:

Data Sheet Doc EU

Leaflet1

Video
Reference Fitting Voltage range Frequency Operating Voltage AC Weight (kg)
CC-161-K K 10 - 30 kV 50 / 60 Hz 10 - 30 kV 0,820

Related Products

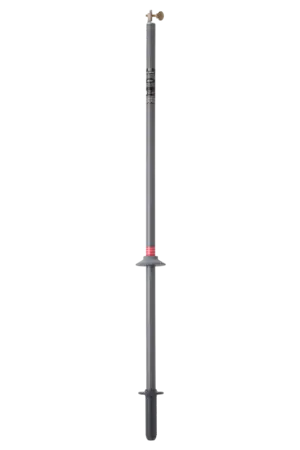

CC-45-K

Insulated stick

View

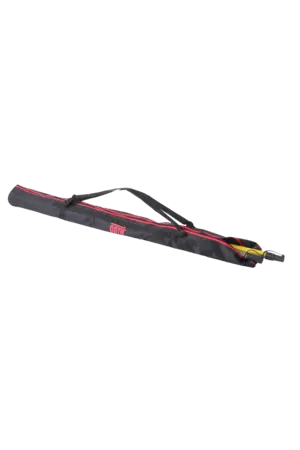

CM-1-10

Stick cover 1.00/1,30 m

View
MO-185-BL

Insulated Arc Flash safety helmet with integrated face shield, APC 1

View

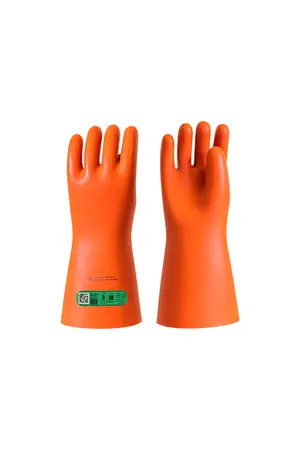

CGM-3-..

Insulating gloves with mechanical protection and Arc Flash 12 cal/cm², class 3 - 26 500 V AC, length : 360 mm

View
CG-3-..-NR

Latex electrical insulating gloves class 3 - 26 500 V AC

View

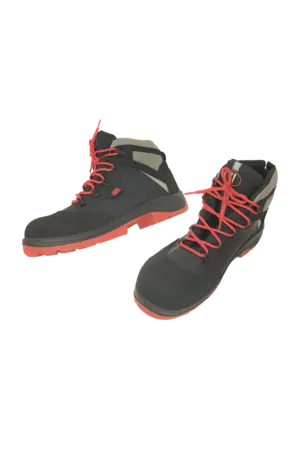

MV-223-..

Safety shoes with insulating sole, leather and high type

View

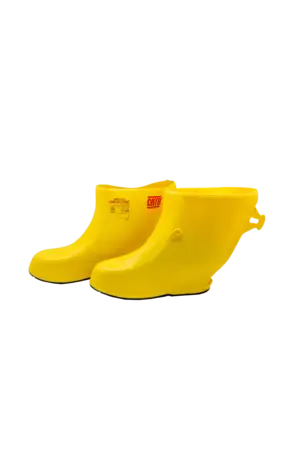

MV-138..
